Stainless steel is one of the most popular materials used in various industries due to its durability, corrosion resistance, and wide range of applications. Among the many stainless steel grades available, stainless steel 430 plates stand out for their excellent formability, good corrosion resistance, and cost-effectiveness. In this blog, we will explore everything about the grade and composition of stainless steel 430 plates in simple and clear terms.
What Are Stainless Steel 430 Plates?

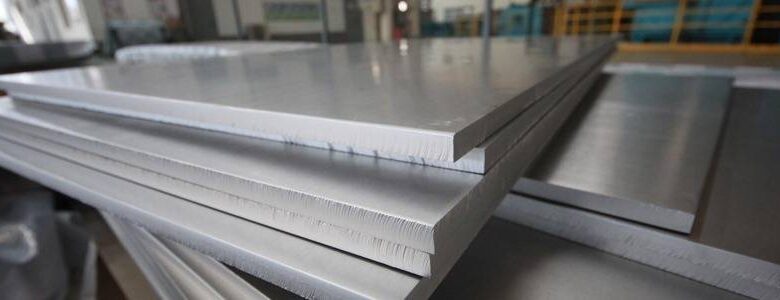

Stainless steel 430 plates are flat sheets made from grade 430 stainless steel. This grade belongs to the ferritic family of stainless steels. It is a non-hardenable steel that offers good corrosion resistance and formability. These plates are widely used in applications where appearance, corrosion resistance, and moderate mechanical strength are important.
Why Grade 430 Is Called Ferritic Stainless Steel?
Stainless steel is divided into different families based on its crystal structure. The ferritic type, like grade 430, has a body-centered cubic (BCC) structure. This structure gives ferritic stainless steel properties like good resistance to stress corrosion cracking, high-temperature strength, and magnetic behavior.
Unlike austenitic grades, ferritic stainless steel such as 430 does not contain a large amount of nickel. This makes it more affordable and a better choice for applications where cost is a factor.
Chemical Composition of Stainless Steel 430 Plates
Understanding the composition of stainless steel 430 plates is important to know their performance and qualities. The chemical elements used in 430 stainless steel are carefully selected to provide specific properties.
Here is the typical chemical composition:
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Carbon (C) | ≤ 0.12 |
| Manganese (Mn) | ≤ 1.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Chromium is the main element that provides corrosion resistance. The absence of nickel makes it more cost-effective than austenitic grades like 304. However, because it doesn’t contain much nickel, it has slightly lower corrosion resistance.
Mechanical Properties of Stainless Steel 430 Plates
The mechanical properties of stainless steel 430 plates are suitable for a variety of applications. Here are the commonly observed mechanical characteristics:
- Tensile Strength: 450 MPa (minimum)
- Yield Strength: 205 MPa (minimum)
- Elongation: 22% (minimum in 50 mm)
- Hardness (Brinell): Max 183 HB
These properties make it a reliable option for both indoor and outdoor use.
Corrosion Resistance
One of the key benefits of stainless steel 430 plates is their resistance to corrosion. While it is not as resistant as stainless steel 304 or 316, grade 430 can resist oxidation and many mild corrosive environments. It is ideal for dry environments, mild organic acids, and certain food processing applications.
However, it’s not suitable for use in highly humid, salty, or marine environments where stronger corrosion resistance is needed.
Heat and Oxidation Resistance
Stainless steel 430 plates perform well in environments where the temperatures are moderate. They can resist oxidation up to about 870°C (1600°F) in intermittent service and up to 815°C (1500°F) in continuous service. However, the performance may reduce over time in highly elevated temperature conditions due to grain growth and loss of mechanical strength.
Magnetic Properties
Unlike many other stainless steels, stainless steel 430 plates are magnetic. This is because of their ferritic structure. This makes them useful in electrical appliances and situations where magnetic properties are needed.
Formability and Weldability
Another advantage of stainless steel 430 plates is that they are easy to form and bend. They can be shaped into different sizes and forms using standard forming techniques. However, when it comes to welding, grade 430 is not as easy to weld as austenitic grades.
If welding is necessary, special techniques should be followed to avoid issues like grain growth and brittleness in the heat-affected zone.
Surface Finish and Appearance
Stainless steel 430 plates are known for their shiny, attractive appearance. They are often used where aesthetics matter, such as in kitchen equipment, decorative trim, and appliances. The surface can be finished in different ways such as 2B, BA (Bright Annealed), or mirror finish depending on the requirement.
Common Applications of Stainless Steel 430 Plates
Due to their balance of performance and affordability, stainless steel 430 plates are widely used in different industries:
- Kitchen equipment like sinks, dishwashers, and countertops
- Automotive trim and exhaust parts
- Washing machine drums
- Back panels for refrigerators and ovens
- Architectural decorations and indoor panels
- Food processing equipment
- Home appliances and hardware
These plates are a practical choice where visual appeal and basic corrosion resistance are needed.
Benefits of Using Stainless Steel 430 Plates
Here are some of the key benefits of using stainless steel 430 plates:
- Cost-effective: Lack of nickel keeps the price lower
- Good corrosion resistance in dry and mild environments
- Attractive surface finish suitable for visible applications
- Magnetic properties which make it suitable for specific industrial uses
- Good formability, allowing it to be bent or cut easily
- Recyclability, making it eco-friendly
Limitations to Keep in Mind
While stainless steel 430 plates offer many advantages, they also have a few limitations:
- Not suitable for use in marine or coastal environments
- Lower corrosion resistance than grades like 304 or 316
- Limited weldability
- Brittle under high-stress or high-temperature applications over time
Knowing these limitations helps you choose the right grade for your specific application.
Conclusion
Stainless steel 430 plates are a smart option for many everyday and industrial applications. They offer a balance between price and performance. With good corrosion resistance, decent strength, and a nice finish, they are widely used in kitchens, appliances, architecture, and more. Understanding the grade and composition helps you make the right decision based on your needs.
Whether you are designing an appliance, selecting materials for a building project, or choosing parts for a food processing unit, stainless steel 430 plates can be a reliable and cost-effective solution.
